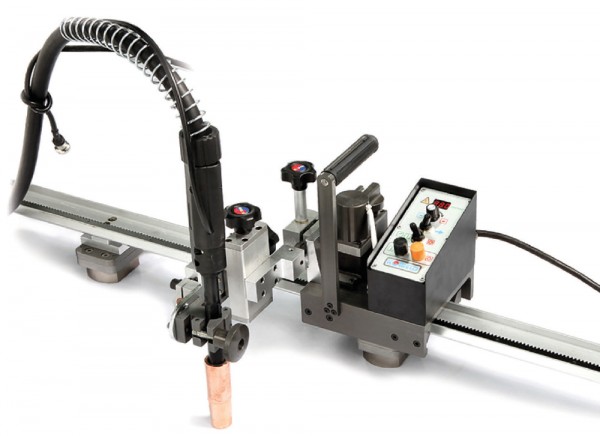

[ Mini Rail Carriage ] SK-201 MINI RAIL AUTO CARRIAGE

ad46d0cbc979316e627c575af9545bff_1475628
ad46d0cbc979316e627c575af9545bff_1475628
Butt/Fillet, muti-welder driving on the rigid aluminum rail
1. Magnet On-Off switch type rail offers in-line adjustment easily.
2. Minimized gear backlash offers various constant speed / adjustable controls precisely thus the highest quality welding and a long life by means of a Special Motor with a Reducer.
3. Crate fill at the beginning and end of welding.
4. The travel speed is set either Cm/Min or Inch/Min programmable in acc with the User Manua.
  • Division
  • Detailed Configuration
    Model
  • Specification
    SK-201
  • Remarks
    Carriage
  • General
  • Input Power
    Dimension
    Weight
  • AC 110V~230V, 50 / 60Hz
    237(W) * 391(L)~423(L) * 239(H)
    6.5 Kg
  •
    -
    -
  • Body Part
  • Driving Method
    Traveling Speed
    Traveling Motor
    Up / Down Angle
  • RACK-PINION DRIVEN
    0~98cm / ±5%
    DC 24V / 12W / 5,000RPM
    0~45°±10°
  •

    BLDC MOTOR

  • Torch Adjustment Part
  • Front / Back Distance
    Up / Down Distance
    Running Angle
    Arm Front / Back Distance
  • 0~32mm
    0~32mm
    ±5°
    0~120mm
  •



  • Rail
  • Fixing
    Material / Size
  • Magnet ON / OFF Type
    AL / 1.5M
  •
