HOME > Customer > Consumption Goods Guide

MINI-V Carriage

No. Name and Specifications
1 Motor AC 6W 1,700RPM
2 Reducer 100:1
3 Bevel Gear 15T
4 Stopper S/W Ass'y
5 Guide arm AL (Left, Right)
6 Guide roller Ass'y
7 Chain Gear 12T
8 Bevel Gear 30T
9 Rubber wheel 50φ
10 ND Magnet 50*50*20mm
11 Spatter preventing cover
12 Torch clamp Ass'y
13 Torch clamp arm
14 Power connector 20-3P
15 Control connector 16-2P
16 Volume RV24YN20KΩ
17 Stop button SP-103B
18 Start button SP-103C
19 P.C.B
20 Toggle (S/W 2 Column 3P) S/W 2 Column 3P
21 Toggle (S/W 2 Column 3P) S/W 2 Column 3P

SK-107A Carriage

No. Name and Specifications
1 Motor AC 6W 1,700RPM
2 Reducer 100:1
3 Bevel Gear 15T
4 P.C.B
5 Guide arm Left, Right
6 Guide roller Ass'y
7 Stopper S/W Ass'y
8 Chain Gear 15T
9 Bevel Gear 30T
10 ND Magnet 50*60*15mm
11 ND Magnet 50*25*15mm
12 Rubber wheel 50φ
13 Spatter preventing cover
14 Handle Ass'y
15 Torch clamp Ass'y
16 Torch clamp arm

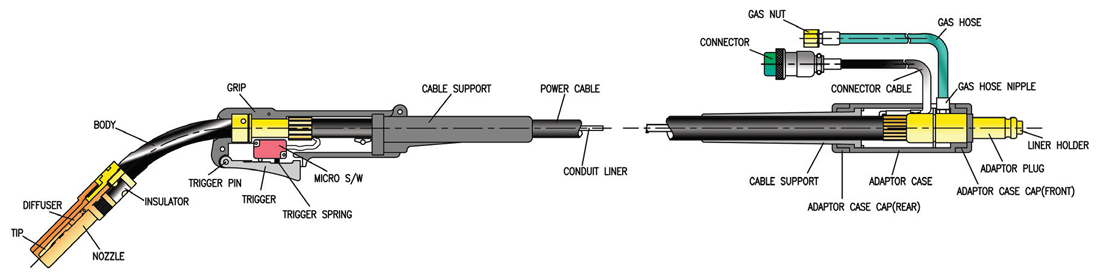

CO2 MANUAL TORCH

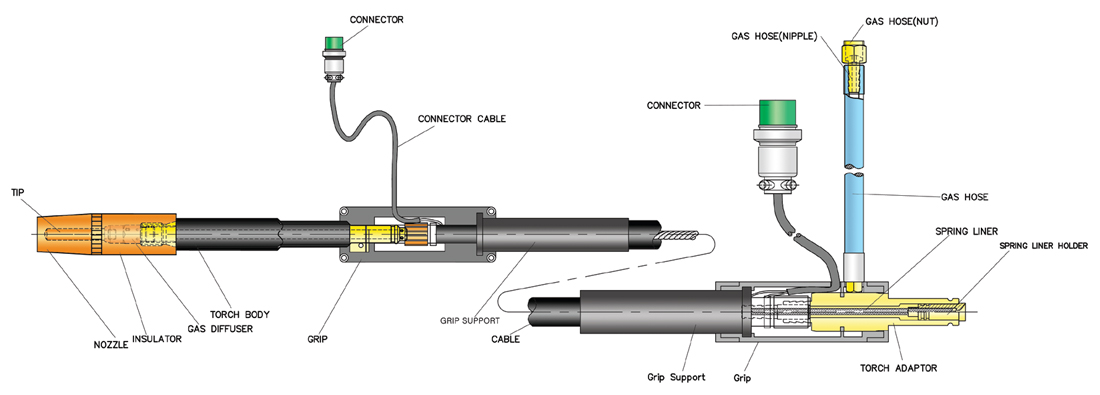

CARRY AUTO TORCH

TIG TORCH 500A WATER COOLING TYPE

MIG AUTO TORCH WATER COOLING TYPE
