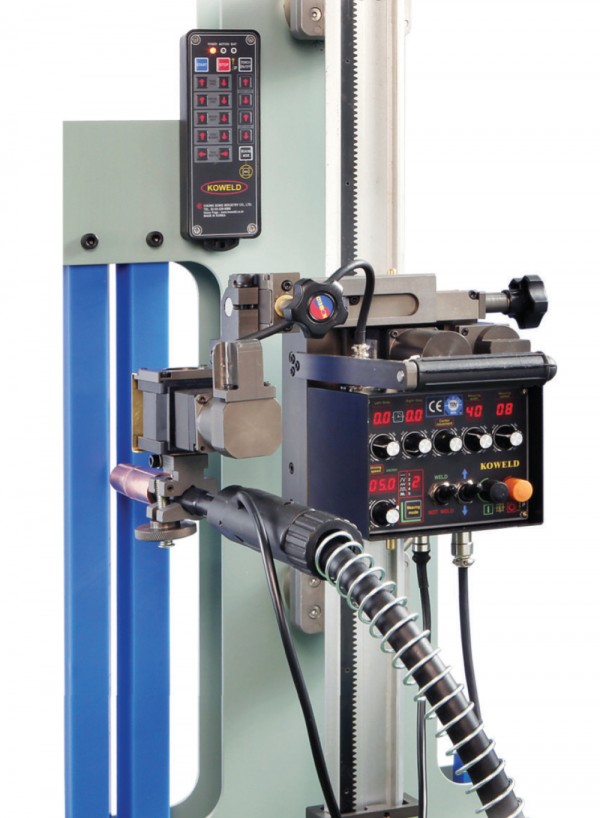

[ Mini Rail Carriage ] SK-100C MINI RAIL AUTO CARRIAGE
Butt / Fillet weaver for multi welder/position and driving on the aluminum rigid rail and easy to control by local panel and remote controller.
1. Touch sensors stop carriage travel and welding while activating.
2. Weaver controls the width and can get weaving width as wanted and quality welding.
3. Minimized gear backlash offers various constant speed / adjustable controls precisely thus the highest quality welding and a long life by means of a Special Motor with a Reducer.
4. Magnet On-Off switch type rail offers in-line adjustment easily.
5. The travel speed is set either Cm/Min or Inch/Min programmable in act with the User Manual.
1. Touch sensors stop carriage travel and welding while activating.
2. Weaver controls the width and can get weaving width as wanted and quality welding.
3. Minimized gear backlash offers various constant speed / adjustable controls precisely thus the highest quality welding and a long life by means of a Special Motor with a Reducer.
4. Magnet On-Off switch type rail offers in-line adjustment easily.
5. The travel speed is set either Cm/Min or Inch/Min programmable in act with the User Manual.
- Division
- Detailed ConfigurationModel
- SpecificationSK-100C
- RemarksCarriage
- General
- Input Power
Dimension (W x L x H)
Weight - AC 110V~230V, 50 / 60Hz
340(W) * 209(L) * 241(H)
6.8 Kg -
-
-
- Body Part
- Driving Method
Traveling Speed
Traveling Motor - RACK-PINION DRIVEN
0~88cm / min
DC 24V / 12W / 5,000RPM -
BLDC MOTOR
- Torch Adjustment Part
- Up / Down Distance
Front / Back Distance
Running Angle - 0~40mm ±5%
0~60mm ±5%
±5° -
- Weaver
- Weaving Motor
Reducer
Weaving Width
Weaving Speed
Left Stop / Right Stop
Center Shift
Distance for Operating Remocon - DC 24V / 12W / 5,000RPM
1000 : 1
±16°
0~5rpm / min
0.0~9.9(sec)
0~360°
10m - BLDC MOTOR
- Rail
- Fixing
Material / Size - Magnet ON / OFF Type
AL / 1.5M / 5.4kg -
