Oscillator

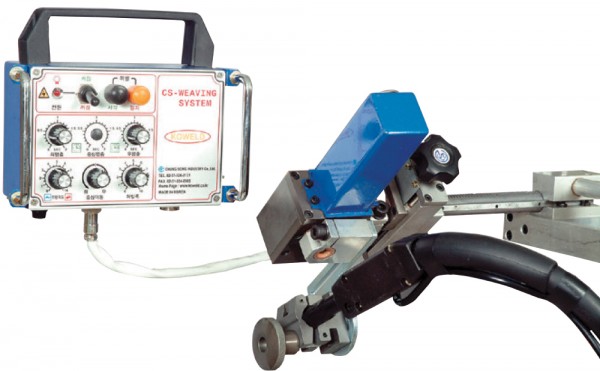

[ R-Weaver ]
ad46d0cbc979316e627c575af9545bff_1475632
1. Modular design and can be used with any type of welding equipment.
2. Light weight, small size and simple operation.
3. Digitally controlled the weaving width, weaving center shitf, right/left/center dwell and weaving width, weaving pattern.
4. Automatic return of the torch position to the center of weaving stroke at every weld stop.
5. Free input voltage(95~250V) with built in SMPS, and the possible change of the input voltage during welding will not influence the Carriage performance.
  • Model
  • S-Weaver
  • Dimension
  • 175(W) * 75(L) * 120(H)
  • Weight
  • 2.9 kg
  • Up / Down Angle
  • 52mm
  • Left / Right
  • 70mm
  • Welding Angle
  • ± 45º
  • Motor
  • DC 24V(90 : 1)
  • Center Shift
  • Left / Right 5mm
  • Control Type
  • Potention-Meter Control Feedback
  • Width / Angle
  • ± 8º
  • Weaving Speed
  • 12 ~ 140회

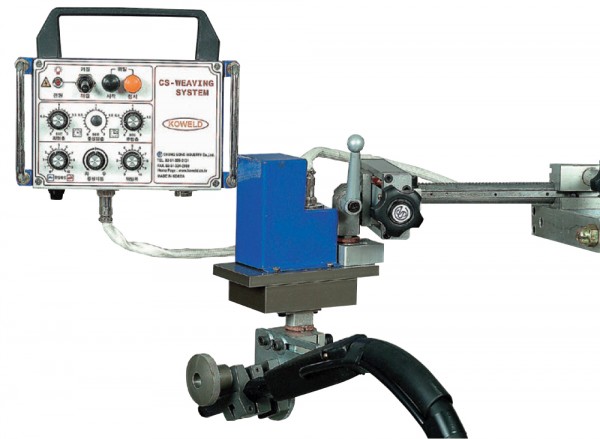

[ S-Weaver ]
ad46d0cbc979316e627c575af9545bff_1475632
1) Modular design and can be used with any type of welding equipment.
2) Light weight, small size and simple operation.
3) Digitally controlled the weaving width, weaving center shitf, right/left/center dwell and weaving width, weaving pattern.
4) Automatic return of the torch position to the center of weaving stroke at every weld stop.
5) Free input voltage(95~250V) with built in SMPS, and the possible change of the input voltage during welding will not influence the Carriage performance.
  • Model
  • R-Weaver
  • Dimension
  • 175(W) * 75(L) * 120(H)
  • Weight
  • 2.7kg
  • Up / Down Angle
  • 52mm
  • Left / Right
  • 70mm
  • Welding Angle
  • ± 45º
  • Motor
  • DC 24V(300 : 1)
  • Center Shift
  • ± 4º
  • Control Type
  • Potention-Meter Control Feedback
  • Width / Angle
  • ± 8º
  • Weaving Speed
  • 12 ~ 140회
