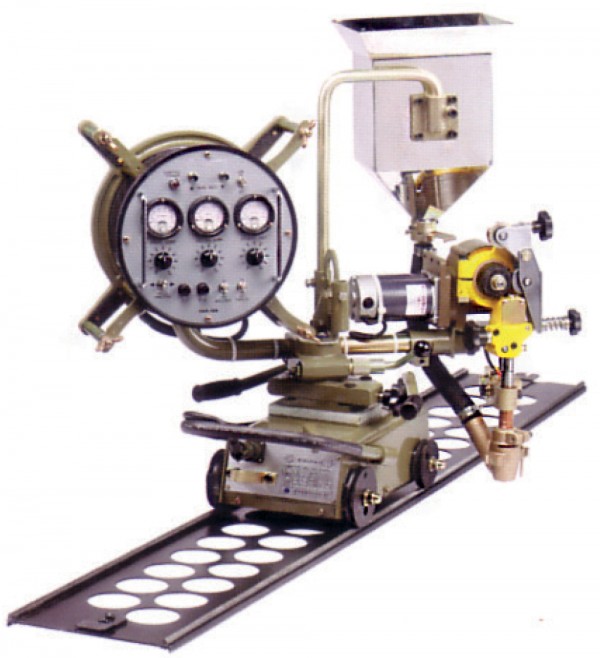

Submerged Carriage
[ SW-41 Type ]
1. Stable welding with IC+Thyristor control method.
2. Excellent in hardness and strong property
3. Efficient in operation with Panel concentration system
4. Efficient in welding by using high Current of 300A ~ 1,500A
5. Smooth wire feeding by using strong Wire Feeding Motor
6. With 4-wheel driving system, it can be used to welding in a sloping side
7. Carriage is made in alternating & direct current types according to Welding Power Source
8. Easy in working of bridge construction
2. Excellent in hardness and strong property
3. Efficient in operation with Panel concentration system
4. Efficient in welding by using high Current of 300A ~ 1,500A
5. Smooth wire feeding by using strong Wire Feeding Motor
6. With 4-wheel driving system, it can be used to welding in a sloping side
7. Carriage is made in alternating & direct current types according to Welding Power Source
8. Easy in working of bridge construction
- Model No.
- SSC-41AC / SSC-41DC
- Welding Current (A)
- 300~1,500
- Feed Roller
- 3.2~6.4 φ
- Nozzle Adjusting Range (mm)
- Horizontal: 50 / Vertical: 50
- Travel Speed (cm)
- 10~100
- Flux Hopper Volume
- 6 ℓ
- Welght (Kg)
- 48 Kg
- Control Power
- 110V / 1φ
