[ CO2 Welding Machine ] Hyundai Welding Machine
[ HD AUTO SERIES ]
1) All sequences is implemented in digital Stable arc output
2) Constant welding parameters even when input voltage change ±10%
3) Minimized change of output voltage
4) Minimized standby power by adopting power saving circuit Excellent durability & maintainability
2) Constant welding parameters even when input voltage change ±10%
3) Minimized change of output voltage
4) Minimized standby power by adopting power saving circuit Excellent durability & maintainability
| Model | 350S+ | 500S+ | 500M+ | |
| TYPE | Co2 / MAG | Co2 / MAG / GOUG | ||
| Rated Power | kVA | 18 | 30 | |
| Input Voltage | V | 3P 220V, 380V, 440V±10% | ||
| Frequency | Hz | 50 / 60 | ||
| Rated Output Current | A | 350 | 500 | |
| Rated Output Voltage | V | 36 | 42 | |
| Rated Output Current Range | A | 40~350 | 40~500 | |
| Rated Output Voltage Range | V | 10~36 | 15~42 | |
| Max. Open Circut Voltage | V | 60 | 70 | |
| Duty Cycle | % | 60 | 60 | |
| Weight | kg | 130 | 203 | |
| Dimension (W * D * H) | mm | 420 * 670 * 785 | 480 * 695 * 850 | |

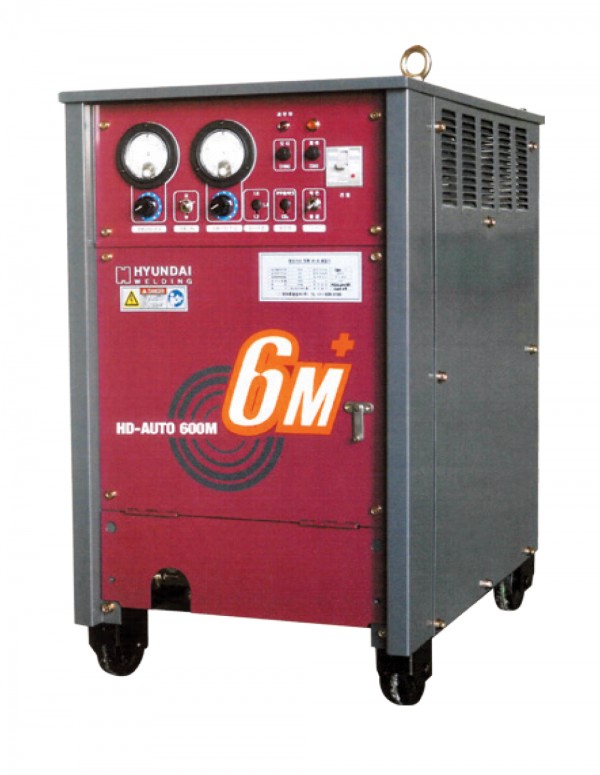

| Model | 600E+ | 600S+ | 600M+ | 800S+ | 1000S+ | |
| TYPE | Co2 / MAG | Co2 / MAG / GOUG | Co2 / MAG | Co2 / MAG / GOUG | ||
| Rated Power | kVA | 40 | 56 | 77 | ||
| Input Voltage | V | 3P 220V, 380V, 440V±10% | ||||
| Frequency | Hz | 50 / 60 | ||||
| Rated Output Current | A | 600 | 800 | 1000 | ||
| Rated Output Voltage | V | 50 | 50 | 50 | ||
| Rated Output Current Range | A | 60~600 | 150~800 | 250~1000 | ||
| Rated Output Voltage Range | V | 15~50 | 15~50 | 12~50 | ||
| Max. Open Circut Voltage | V | 80 | 80 | 77 | ||
| Duty Cycle | % | 70 | 100 | 70 | 100 | |
| Weight | kg | 215 | 220 | 250 | 380 | |
| Dimension (W * D * H) | mm | 490 * 728 * 880 | 530 * 728 * 980 | 620 * 830 * 1140 | ||
