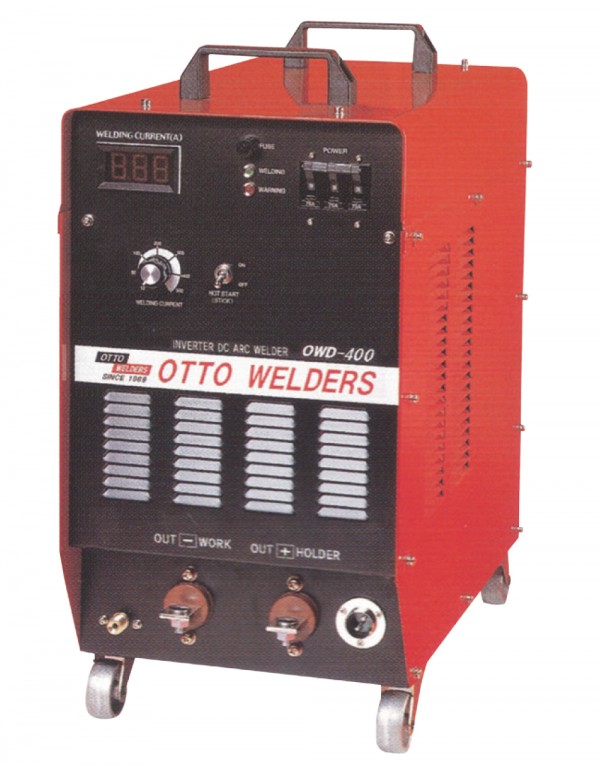

Inverter DC ARC Welder
[ OWD-400 ]
1. Fixed damage to the IGBT component due to the instantaneous input power.
2. For good welding start of weak point welds added HOT Start on / off function.
3. Water & Vibration resisance.
4. Reliability improvement by using module type of output Diode and Standard IGBT.
5. All metals, deep welding (Mild steel, High Strength steel,
2. For good welding start of weak point welds added HOT Start on / off function.
3. Water & Vibration resisance.
4. Reliability improvement by using module type of output Diode and Standard IGBT.
5. All metals, deep welding (Mild steel, High Strength steel,
■ Standard Spec.
- Model
- OWD-160
- OWD-180
- OWD-200
- Welding Output
- 160A
- 180A
- 200A
- Rated Output
- 3.5Kw
- 5Kw
- 7.5Kw
- Rated Input
- 1φ, 220V
- 1φ, 220V
- 1φ, 220V
- Load Voltage
- 22V
- 25V
- 28V
- Rated Duty Cycle
- 40%
- 40%
- 60%
- Frequency
- 50/60Hz
- 50/60Hz
- 50/60Hz
- Hot Start
- X
- O
- O
- Weight
- 8kg
- 10kg
- 12kg
- Model
- OWD-230
- OWD-230H
- OWD-400
- Welding Output
- 230A
- 230A
- 400A
- Rated Output
- 8Kw
- 8Kw
- 20Kw
- Rated Input
- 1φ, 220V
- 1,3φ, 380/440V
- 3φ, 220/380V
- Load Voltage
- 29V
- 29V
- 40V
- Rated Duty Cycle
- 60%
- 60%
- 60%
- Frequency
- 50/60Hz
- 50/60Hz
- 50/60Hz
- Hot Start
- O
- O
- O
- Weight
- 15kg
- 15.5kg
- 40kg
